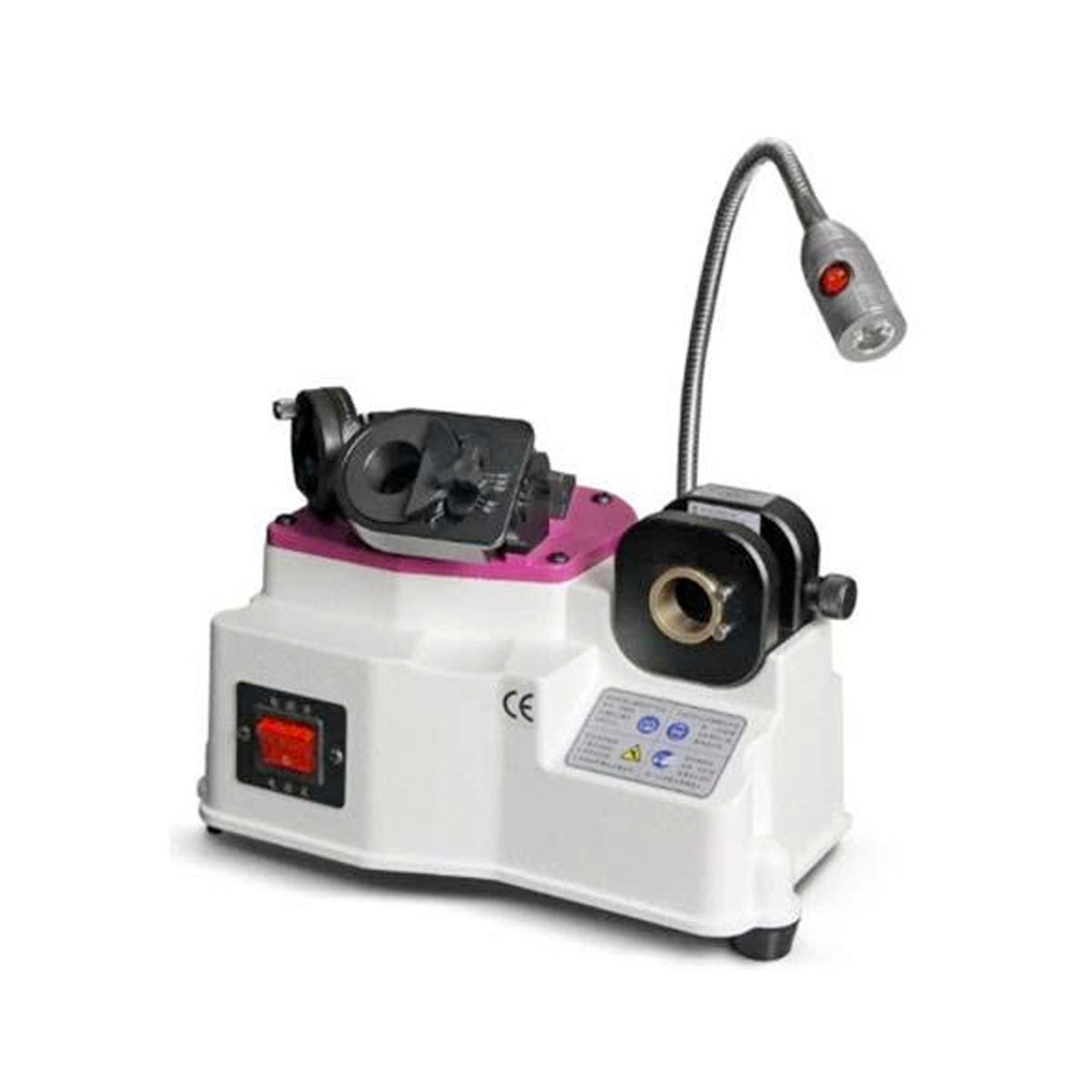

DRILL BITS GRINGDER SERIES 715-10

SKU 715-10 Category

Description

FEATURES

  • Designed for precise sharpening of twist drill bits from Ø3
    to Ø20 mm..
  • It features stable grinding performance, adjustable grinding
    angles and easy operation, making it ideal for tool rooms,
    workshops, and small production environments.

APPLICATIONS
Suitable for sharpening twist drill bits with diameters from Ø3 to Ø20 mm, covering
common sizes such as B1: Ø3– Ø 5.9, B2: Ø6–9.9 B3: Ø10–13 mm providing
flexibility for various machining requirements.

SPECIFICATION

MODEL 715-10-20 715-10-13
Input Voltage 220V / 50Hz 220V / 50Hz
Rated Power 600 W 600 W
Motor Speed 6000 rpm 6000 rpm
Grinding Range Ø3 – Ø20 mm Ø2 – Ø13 mm
Grinding Angle 90° – 140° 90° – 140°
Number of Collets 18 pcs 11 pcs
Package Size 370 × 250 × 300 mm 365 × 250 × 300 mm
Net Weight Approx. 10.5 kg Approx. 9.5 kg

STANDARD DELIVERY

NAME QUANTITY
Er Collet dia. 3-20 mm 1 set
Collet sleeve 2 pcs
Inner hexagon Spanner 1 pcs
