Description
APPLICATION

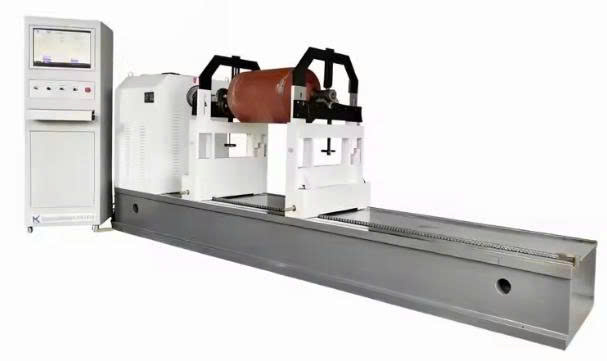

The 721-11 Series is a hard-supporting horizontal dynamic balancing machine with roller bearings and universal-joint coupling drive. An industrial control computer delivers real time color display of imbalance phase, amplitude and speed. Widely used in motors, blowers, diesel engines, agricultural and textile machinery. Supports single-side, double-side and multi-plane correction for shaft, disc and centre-of-gravity rotors
KEY FEATURES

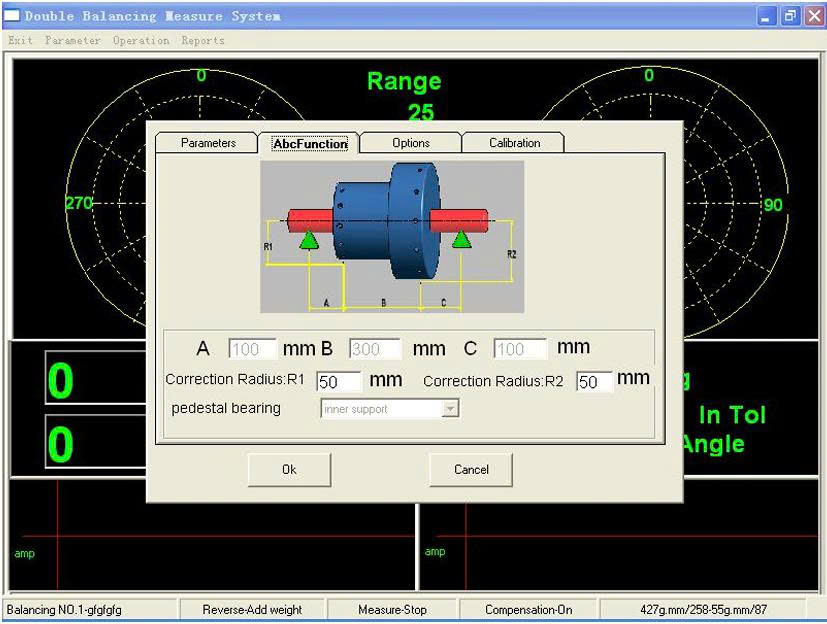

• AM-2000 microcomputer balance measuring system
• 19″ LCD color screen — Windows bilingual UI
• Auto program-controlled amplifier module

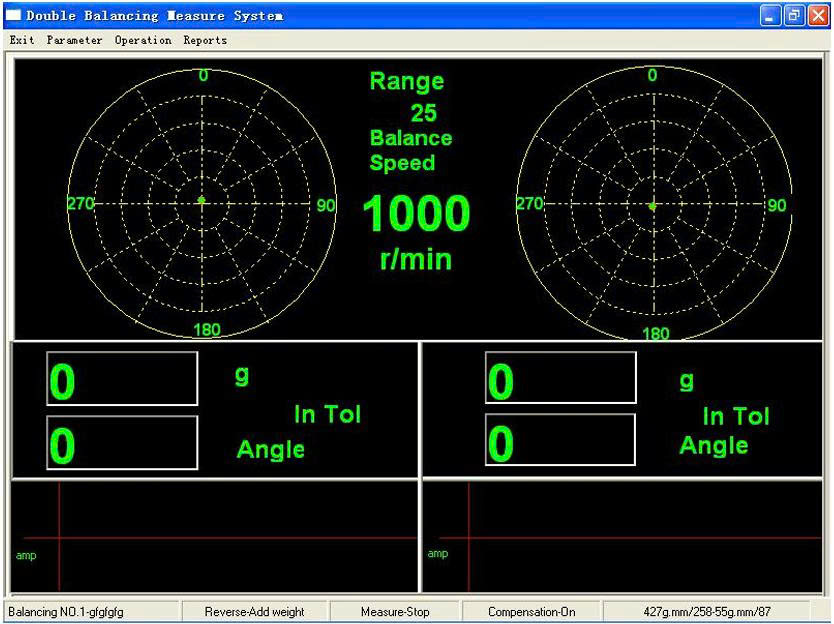

• Vector graphics & waveform real-time display
• Balance angle automatic tracking function
• Parking automatic positioning function
• Variable frequency stepless speed regulation
• Coupling compensation & multi-method measuring
• Workpiece parameter storage & print reporting
• Self-check and automatic signal diagnosis
|
MODEL |
Mass (kg) |
Max Ø (mm) |
Support Span (mm) |
Trunnion Ø (mm) |
Speed (r/min) |
Min Resid. g·mm/kg |
Reduc.
% |
Motor (kW) |
|
721-11-160A |
5–160 |
Φ950 |
60–1420 |
10–90
(90–180 opt) |
300–1500 |
≤1 |
≥90 |
2.2 |
|
721-11-300A |
10–300 |
Φ1200 |
60–1700 |
10–90
(90–180 opt) |
300–1500 |
≤1 |
≥90 |
5.5 |
|
721-11-500A |
20–500 |
Φ1800 |
70–1600 |
20–120
(120–240 opt) |
300–1500 |
≤1 |
≥90 |
5.5 |
|
721-11-1000A |
20–1000 |
Φ1500 |
70–2300 |
20–120
(120–240 opt) |
300–1500 |
≤1 |
≥90 |
7.5 |
|
721-11-1600A |
30–1600 |
Φ1800 |
100–2300 |
20–120
(120–240 opt) |
300–1500 |
≤1 |
≥90 |
11 |
|
721-11-3000S |
50–3000 |
Φ2000 |
300–3000 |
20–120
120–240 |
110–1170 |
≤1 |
≥90 |
11 |
|
721-11-3000A |
100–3000 |
Φ2400 |
300–3000 |
40–180
180–300 |
110–1170 |
≤1 |
≥90 |
11 |
|
721-11-5000A |
200–5000 |
Φ2400 |
340–2960 |
40–180
180–300 |
110–1170 |
≤1 |
≥90 |
18.5 |
|
721-11-10000A |
300–10000 |
Φ2400/ Φ3200 |
240–5100 |
50–200
200–360 |
110–1140 |
≤1 |
≥90 |
45 |
|
721-11-20000A |
500–20000 |
Φ2400/ Φ3200 |
300–5100 |
50–200
200–360 |
110–1140 |
≤1 |
≥90 |
55 |
|
721-11-30000A |
Consult |
Φ3000/ Φ3600 |
400–6500 |
60–220
220–400 |
110–1140 |
≤1 |
≥90 |
75 |
* Highlighted row: 721-11-500A (standard reference model). All models: VFD speed regulation + universal joint drive.
