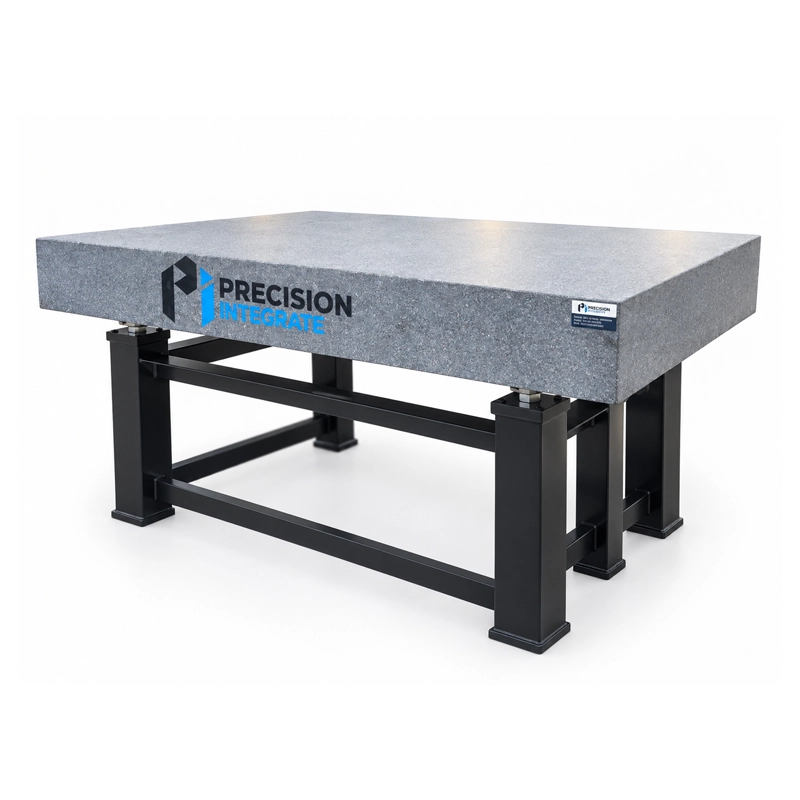

Granite surface plate PI 701-00-160100
Free Quote- Granite, has high hardness, free from deterioration or dimensional change over time, with minimal change in dimension due to temperature changes.
- Meet DIN876, grade 00 inspection room or lab, grade 0 is for workshop.
- Size (LxWxH): 1600×1000×180 mm
- Flatness: <5.7 µm
- Weight: 864 kg
- Max.Load: 600 kg
- DIN876, grade 00
| HEIGHT | 180mm |
| LENGTH | 1600mm |
| MAX LOAD | 600kg |
| WEIGHT | 864kg |
| WIDTH | 1000mm |
