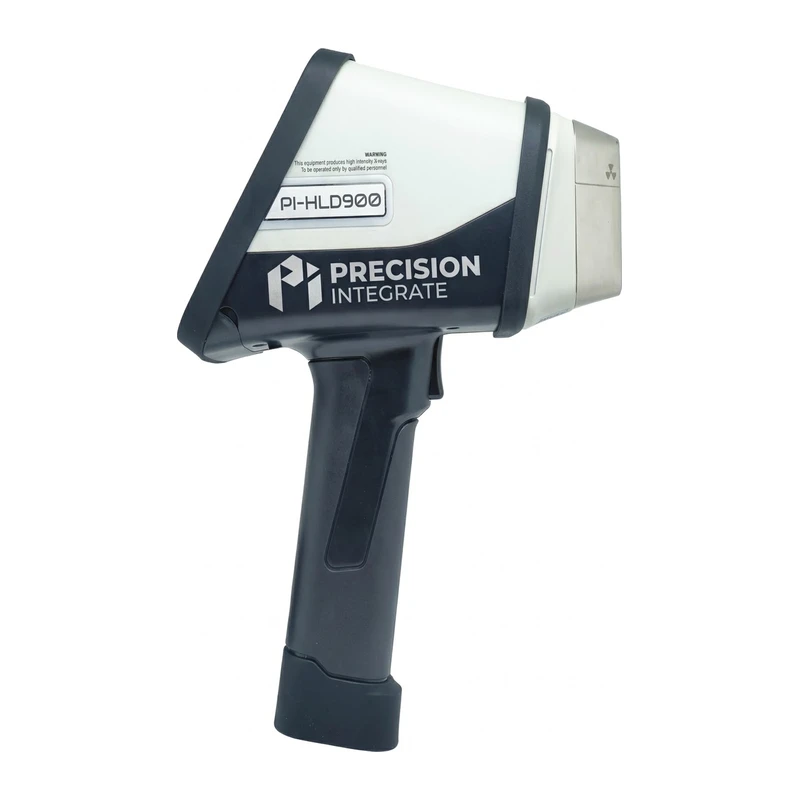

The PI-HLD900 Handheld RoHS Analyzer is designed to meet the requirements of RoHS directives. Using X-ray fluorescence (XRF) technology, it helps confirm that electronic and electrical products are free from restricted hazardous substances.
Key features:
Detects and quantifies lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr⁶⁺), polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE)
Non-destructive analysis: the sample is not altered, which preserves product integrity, reduces waste and lowers testing cost
High-precision XRF with a ceramic packaged microfocus Ag-anode X-ray tube (50kV) and an optimized SDD detector with graphene window, resolution <122eV FWHM
Plug-and-play interface with AI-driven workflows; new users can operate it within hours
Automatic multi-position filter changer
Safety Guard induction device: the X-ray source shuts off when there is no sample in the test area. Password-protected user security
Unique TERUNI structure design that increases heat dissipation of the X-ray tube
Over 100,000 results stored on 32GB memory; data transfer by WiFi and USB
Optional integrated CCD camera with autofocus lens for positioning and recording measuring points
Optional Precision Integrate mobile application: view, share and print data in real time, with sample photo, GPS positioning, barcode scanning and data archiving
Optional data cloud service: upload test results to a secure, encrypted cloud server for statistics, query and analysis of large-scale data
Applications:
Electronics manufacturing: verify materials and components against EU RoHS 2.0, China RoHS 2 and other environmental standards, from incoming material inspection to finished product verification
Toys and children’s products: detect lead, mercury, cadmium and hexavalent chromium
Medical devices: verify hazardous substance levels in materials and components
Material compliance testing of plastics, coatings and packaging
On-site use: production line quality control, rapid material screening in warehouses, compliance checks during export operations
Model: PI-HLD900
Excitation: Ceramic packaged microfocus X-ray tube, Ag Anode 50kV
Window: Kapton with anti-puncture window design optional
Battery: 7.2V Li-ion battery, 6800mAh
Display: Capacitive touch screen (5 inch 720P)
CPU: i.MX 8M Mini quad core 1.8GHz
Signal Processor: 4096-pixel multi-channel detector/80 MHz ADC digital signal processor
Data Storage: Over 100,000 data storage, 32GB
Data transfer: WiFi, USB
Structure design: Unique TERUNI structure design, effectively increases the heat dissipation of the X-ray tube
Radiation safety: Safety Guard induction device, when there is no sample in the test area the source will shut, providing maximum safety protection. Password-protected user security
Camera (optional): Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
Optional: Precision Integrate mobile application (real-time view, share and print of data; sample photo, GPS positioning, barcode scanning, data archiving). Optional data cloud service to upload test results to a secure, encrypted cloud server for statistics, query and analysis of large-scale data
