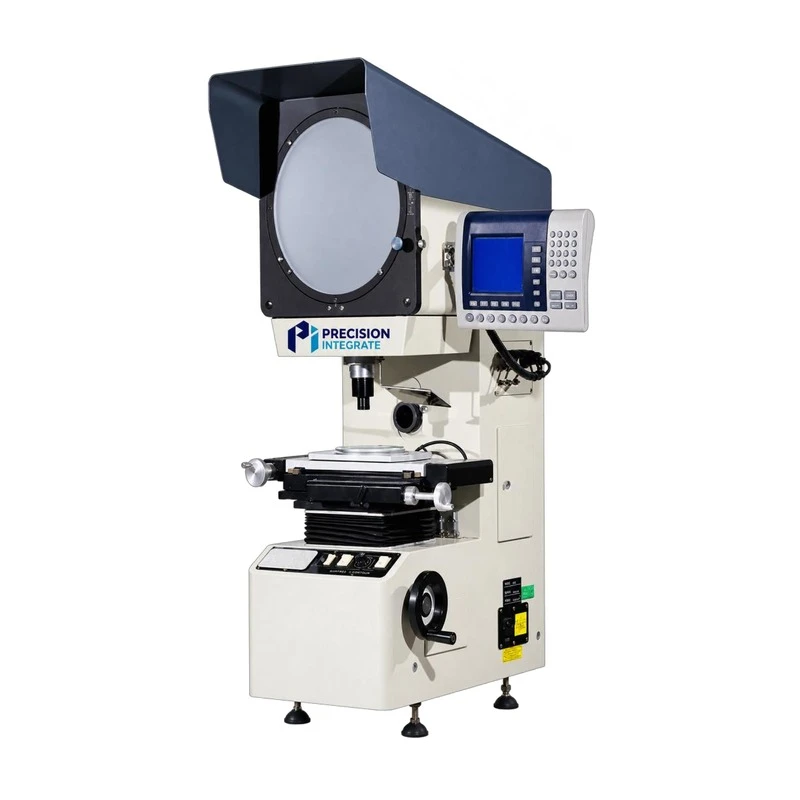

The PI-3000 series is a cost-performance multifunctional vertical projection measuring instrument. It is available in three models, PI-3015, PI-3020 and PI-3025, which differ in stage size and stage travel.
Key features:
Vertical projection with reverse (inverted) image
Metal stage and glass stage in every model
Accuracy <3+L/200 μm, resolution of X/Y scale 0.0005 mm
312 mm diameter screen, effective range ≥300 mm (with “*” reticle)
Screen rotation 0–360° with rotary indicator resolution of 1′ or 0.01
Digital display box and foot switch for convenient operation
Standard accessories:
8A fuse × 5 pcs
Halogen lamp (64640) × 2 pcs
Power cable × 1 pc
Rotary fastening plug × 1 pc
Foot switch group × 1 pc
Objective lens × 1 pc (10X or 20X)
Instrument user’s guide × 1 pc
Digital display box user’s guide × 1 pc
Dust-proof cover × 1 pc
Optional accessories:
Objective lens set (10X, 20X, 50X, 100X)
Rotary table
Arc film (with film clips)
Glass line ruler
Fixture
Measuring software
Instrument table
Model: PI-3015 / PI-3020 / PI-3025
Metal stage size: 340×152 mm / 350×170 mm / 450×280 mm
Glass stage size: 196×96 mm / 246×120 mm / 306×196 mm
Stage travel X and Y-axis: 150×50 mm / 200×100 mm / 250×150 mm
Accuracy: <3+L/200 (μm), L is the measured length in mm
Resolution of X/Y-scale: 0.0005 mm
Screen: Diameter 312 mm, effective range ≥300 mm (with "*" reticle)
