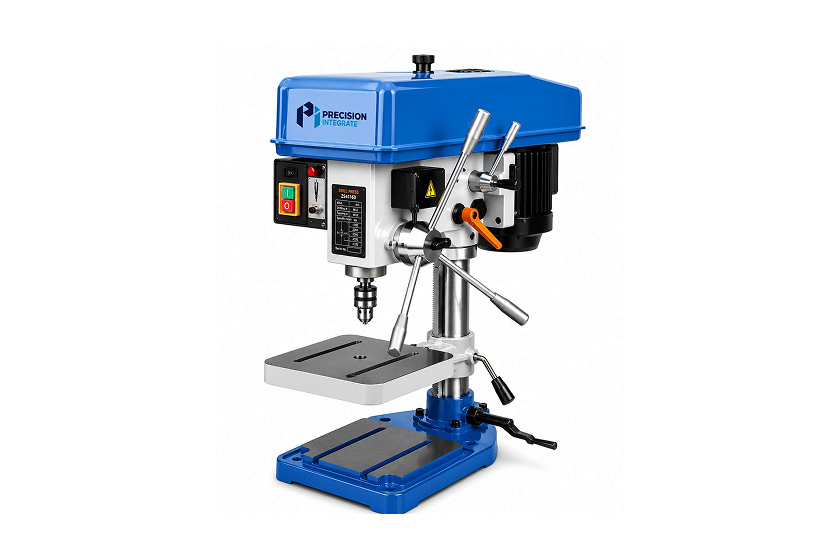

The 811-11 Drilling & Tapping Machine is designed for precision drilling and tapping operations. It features a rigid column structure, reliable spindle system, belt-driven speed adjustment, and an integrated LED work lamp.
Key features:
Easy conversion between drilling and tapping
Premium electrical components
Reliable spindle nose and chuck connection
Belt-driven speed adjustment
LED work lamp
Spindle quill orientation device
Max. Drilling Capacity: M12/M16
Max. Tapping Capacity: M10/M12
Column Diameter: 70 mm
Spindle Sleeve Diameter: 50 mm
Spindle Travel: 100 mm
Distance Spindle Center to Column: 193 mm
Distance Spindle Nose to Table: 410 mm
Distance Spindle Nose to Base: 613 mm\
Spindle Taper: B16/MT2
Spindle Speed: 480–4100 rpm
Speed Steps: 5
Worktable: 200 × 230 mm
Base: 528 × 360 mm
Motor: 0.55/0.75 kW
Net Weight: 90 kg
Packing Dimension: 770 × 420 × 960 mm
Standard accessories:
LED Work Lamp
Drill Chuck
Wrench
Operation Manual
