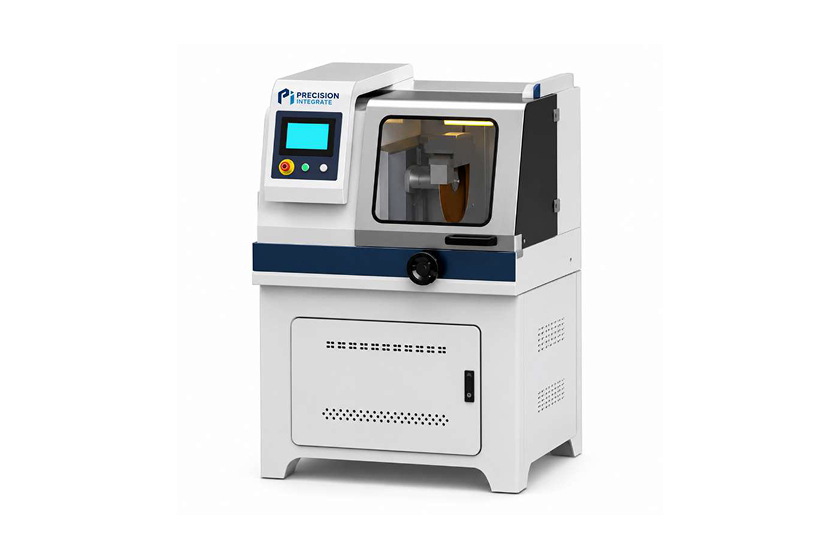

The 807-11 automatic metallographic cutting machine consists of the machine body, electrical control box, cutting chamber, servo motor, cooling system and cutting wheel. It supports manual and automatic cutting, processes round specimens up to 100 mm diameter and rectangular specimens up to 100 mm high and 200 mm deep, and uses a cooling system to prevent overheating.
Key features:
Automatic & Manual Cutting
High Precision Servo Control
Dual-Channel Water Cooling
Adjustable Cutting Speed
Large Cutting Chamber
High Cutting Efficiency
Stable & Repeatable Performance
Easy Operation & Maintenance
Standard accessories:
Water tank: (Including the water pump)
Grinding wheel disc: 350×2.5×32mm
Drain pipe: φ32×1.5m
Inlet pipe: φ25×1.5m
Hose clamp
Lever hand: 12–14mm
Lever hand: 24–27mm
Lever hand: 36mm
Machine shell: Steel plate
Cutting speed: 0–1.5 mm (adjustment step 0.01 mm)
Maximum cutting diameter: 100 mm (pipe)
Rotational speed: 500–3000 r/min
Feed depth tracking: Liquid crystal digital display
